Structure from Sequence: Mechanisms of Tabular Retrieval

Master's Thesis

Overview

My thesis asks a simple question with a surprisingly slippery answer: how do decoder-only language models read a table?

A table is a two-dimensional object. A transformer, however, receives a one-dimensional sequence of tokens: header text, cell text, delimiters, newline tokens, and then a question. The model is never handed a dataframe. If it answers a table lookup question correctly, it has somehow recovered enough of the latent row-column structure from the serialized text to route the question to the right cell.

The central claim of this project is that table lookup is not one monolithic skill. In Llama-3.1-8B, the current evidence points to a rough two-stage pipeline:

1. Matching. Early and middle layers match the queried column name and row index back to the corresponding header and index tokens in the table.
2. Retrieval. Later layers route attention to the row-column intersection and assemble the final answer.

For example, the table we think of as a two-dimensional object:

Row	City	Score
1	Boston	82
2	Chicago	91
3	Seattle	77

reaches the model as a text sequence:

| Row | City | Score |
| --- | --- | --- |
| 1 | Boston | 82 |
| 2 | Chicago | 91 |
| 3 | Seattle | 77 |

Question: What is the Score for row 2?

We see the line breaks rendered, but the same input is closer to the 1-dimensional:

| Row | City | Score |\n| --- | --- | --- |\n| 1 | Boston | 82 |\n| 2 | Chicago | 91 |\n| 3 | Seattle | 77 |\n\nQuestion: What is the Score for row 2?

And after tokenization, the model sees only a sequence of integer token IDs. The exact IDs are tokenizer-specific, but structurally the input has become something like:

[91, 4213, 765, 9102, 765, 14877, 765, 198, 91, 4521, 765, 4521, 765, 4521, 765, 198, 91, 220, 16, 765, 15309, 765, 220, 6086, 765, 198, 91, 220, 17, 765, 25342, 765, 220, 8061, 765, 198, 91, 220, 18, 765, 23128, 765, 220, 2813, 765, 271, 14924, 25, 3639, 374, 279, 14877, 369, 2872, 220, 17, 30]

The core tension is that the row-column geometry is not a native part of the input. It has to be reconstructed from delimiters, line breaks, header tokens, and repeated cell positions in the serialized text.

This post is a summary of the thesis as it stands. It serves as research log and a preliminary draft: the main story is already visible, but some experiments are still running and several causal tests remain open.

Why tables?

Language models are often asked to operate over structured data: pasted CSVs, markdown tables, tool outputs, spreadsheet snippets, database rows, JSON objects, logs, and reports. In deployed systems, the model may also have access to tools that parse the data for it. But even when tools help, the model’s native ability to infer structure from a prompt still matters. It determines what the model notices, how it follows references, how robust it is to formatting changes, and when it silently loses track of the object it is supposed to reason about.

Tables are a good minimal case. They are simple enough to define precise lookup tasks, but structured enough that success cannot be explained by local next-token statistics alone. To answer “what is the value in column Score, row 2?”, the model must identify a column axis, identify a row axis, and retrieve the value at their intersection.

That makes tables a useful bridge between two interpretability questions:

1. How do models extract latent structure from one-dimensional text?
2. Which internal components make that structure behaviorally useful?

The same question appears in richer forms elsewhere. A JSON object is a flat sequence with latent hierarchy. Code is a flat sequence with scope, binding, and control flow. A game transcript is a flat sequence with a latent board state. Tables let us study this broader problem in a controlled setting where the “right answer” is easy to score.

Related work

This project is closest in spirit to mechanistic interpretability work that reverse-engineers model behaviors into circuits. The clearest inspiration is IOI, the Indirect Object Identification circuit in GPT-2 small. IOI showed that a natural language behavior could be explained in terms of specific attention heads and causal interventions, rather than only with aggregate attention visualizations. My table work follows the same ambition: find the heads, characterize their roles, and then intervene on them.

There is also a natural connection to the Transformer Circuits work on induction heads and earlier circuit methodology. Induction heads are a canonical example of models learning a reusable sequence operation: find a previous pattern, then copy or continue it. Table lookup is not the same operation, but it has a similar flavor. The model must find a structural landmark in context, bind a query token to it, and use that binding downstream.

A second related thread studies whether sequence models learn latent world models. In Emergent World Representations, an Othello sequence model develops an internal representation of board state despite being trained only on move sequences. Tables pose a humbler version of the same question: does a decoder trained on text build internal row and column coordinates when all it observes is a serialized table?

Finally, there is a large table-question-answering literature, including specialized table encoders such as TAPAS. Those systems often modify the input representation or architecture to make tables easier to consume. Here the object of study is different: I ask how ordinary decoder-only LLMs, with no explicit table embedding, recover enough table structure from plain text.

The task: structural question answering

The main task is deliberately plain. The model receives a table and a question whose answer is a cell value inside that table:

| Row | Name | Score | City |
|---:|---|---:|---|
| 1 | Ada | 91 | Boston |
| 2 | Bea | 84 | Denver |
| 3 | Cal | 77 | Austin |

Question: What is the value in the 'Score' column, row 2?
Answer:

The correct answer is 84. The answer is determined entirely by the prompt. This makes the task useful for interpretability: success requires in-context structure processing rather than memorized world knowledge.

The current experiments use real tables serialized as markdown or CSV. The main models are Llama-3.1-8B and Qwen-2.5-7B, each in base and Instruct variants, run through TransformerLens so attention patterns and residual activations can be inspected.

I study the task from five angles:

1. Behavior. Can the model answer cell-lookup questions exactly?
2. Residual probes. Can linear probes decode row, column, or cell-position labels from delimiter-token residual activations?
3. Attention alignment. Do heads place more attention than a causal-uniform baseline on same-row or same-column table regions?
4. Question routing. When a question is appended, do question-side tokens attend to the correct cell, target column header, target row index, or other structural regions?
5. Causal interventions. What happens when candidate matching or retrieval heads are mean-ablated?

What the models can do

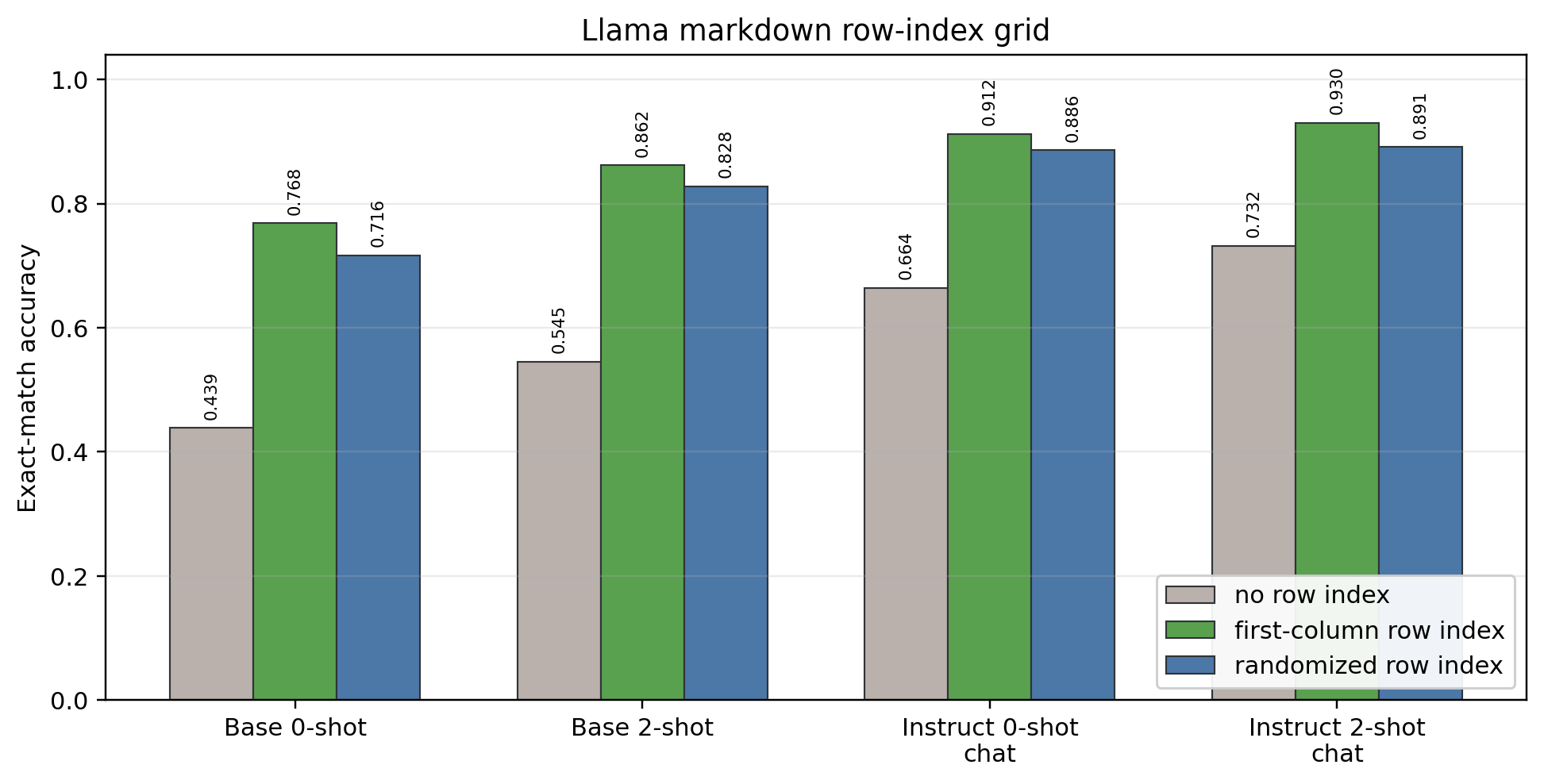

Behaviorally, the task is not solved by default, but the model improves sharply when the prompt gives it an explicit row-index column. In the completed Llama markdown grid, exact-match accuracy looks like this:

model and prompt	no row-index	first-column row-index	randomized row-index position
Llama base, zero-shot	0.439	0.768	0.716
Llama base, 2-shot	0.545	0.862	0.828
Llama Instruct, zero-shot chat template	0.664	0.912	0.886
Llama Instruct, 2-shot chat template	0.732	0.930	0.891

First, row indexing matters enormously. Adding the row-index column lifts every cell by about 20 to 33 accuracy points. This is not a tiny prompt polish; it changes the task the model is doing internally.

Second, the row anchor is mostly about content, not first-column position. Moving the row-index column to a randomized position only costs about 3 to 5 points relative to keeping it first.

Third, markdown is consistently easier than CSV. In the earlier format-level aggregates, markdown beats CSV by about 7 points for Llama base (0.550 vs 0.483) and 12 points for Llama Instruct (0.678 vs 0.563). Those “pooled” runs are not a separate condition; they are aggregate format comparisons over the evaluated real-table questions. Whitespace-only markdown also hurts: removing pipe delimiters drops Llama Instruct zero-shot with row-index from 0.912 to 0.873.

The strongest behavioral intervention is not model choice, but giving the model an explicit row anchor.

From row counting to row matching

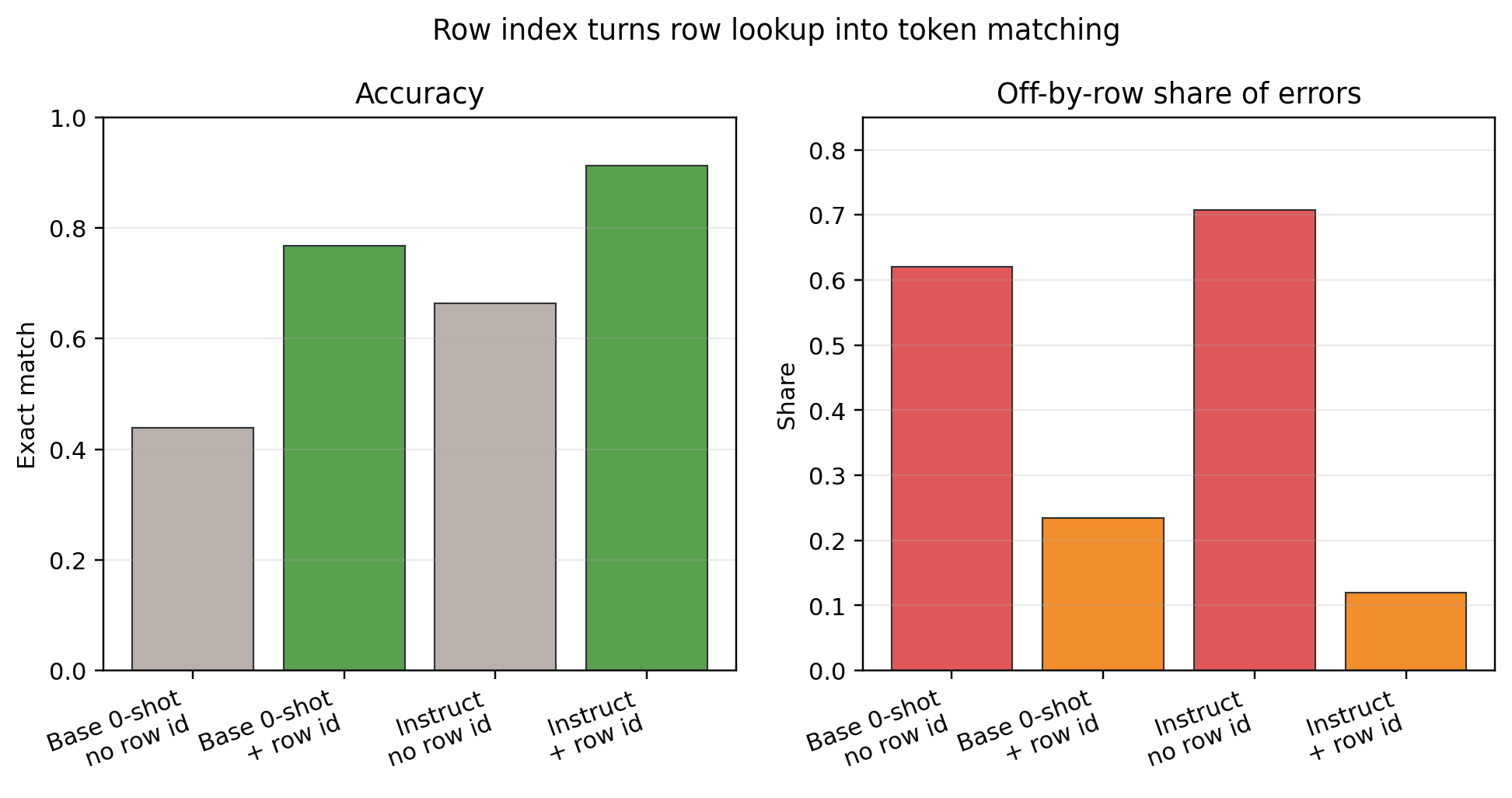

The row-index result changed how I think about the task. Without an explicit index column, “row 7” means “count down to the seventh data row.” With an index column, “row 7” means “match the token 7 in the question to the token 7 in the table’s index column.” That is a very different computation.

The error analysis supports this distinction. Define off_by_row as an error where the model retrieves from the right column but the wrong row. Without a row-index column, this is the dominant failure mode:

config	exact	off_by_row (% of errors)	wrong_col_same_row	not_in_table
base zero-shot, no row-index	0.439	62.1%	4.0%	25.9%
base zero-shot, + row-index	0.768	23.5%	17.3%	41.0%
Instruct, no row-index	0.664	70.7%	5.6%	14.5%
Instruct, + row-index	0.912	12.0%	32.0%	30.1%

Mechanistically, this fits the token-routing results. The question token group corresponding to the row keyword itself has almost no useful routing signal: row_keyword -> header peaks around 0.06. The row number, by contrast, can route to the row-index column. The model is not robustly finding rows by counting or by a natural row name; it is using the explicit index column as a load-bearing anchor.

Adding a row-index column converts a brittle counting problem into a matching problem.

A proposed table-reading pipeline

The working model is that cell lookup decomposes into a pipeline. The stages are not perfectly modular, but they separate strongly by layer depth.

flowchart LR
  A[Serialized table tokens] --> B[Delimiter and axis landmarks]
  Q[Question tokens] --> C[Column-name and row-index matching]
  B --> C
  C --> D[Late retrieval to target cell]
  D --> E[Answer token]

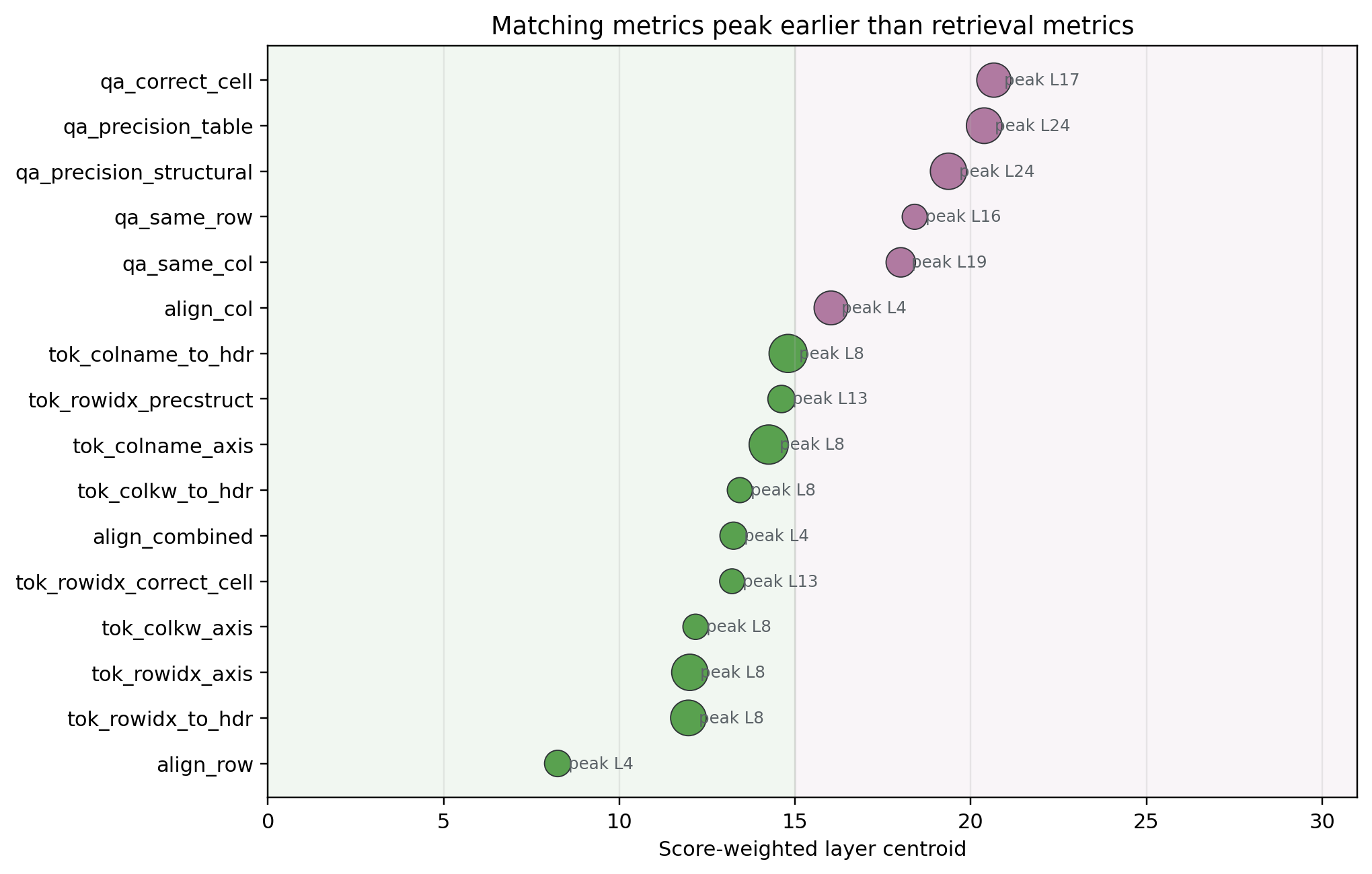

The score-based circuit map supports this depth-wise separation. In Llama Instruct on markdown tables with row indices, matching metrics peak in early and middle layers. Retrieval metrics peak later:

stage	representative metrics	peak layers	score-weighted centroid
Matching	column-name -> header, row-index -> header, row/column alignment	L4-L8	about L8-L15
Retrieval	correct-cell attention, structural precision, table precision	L17-L24	about L18-L21

The important point is not that there are exactly two clean modules. The important point is that the model appears to first establish useful structural bindings, then use those bindings later when generating the answer.

The strongest structural signals do not all peak at the same depth. Matching appears earlier; correct-cell retrieval appears later.

Stage 1: establishing column structure

Before the model can answer a question, it needs a way to represent table axes. The attention-alignment analysis asks whether heads attend more than a causal-uniform baseline to same-row or same-column regions. This is deliberately weaker than “the head answers the question”; it measures whether the head respects table geometry at all.

Several heads show strong column alignment. In Llama Instruct markdown runs, heads such as L4H16, L8H11, L14H19, and L10H2 place unusually high mass along the column axis. The same analysis also finds row-aligned heads, though row structure is much less useful behaviorally unless a row-index column is present.

This is the first place where the “structure from sequence” story becomes visible. The model does not receive a column identifier. But delimiter tokens, header tokens, and repeated row formatting create landmarks that some heads can use as implicit coordinates.

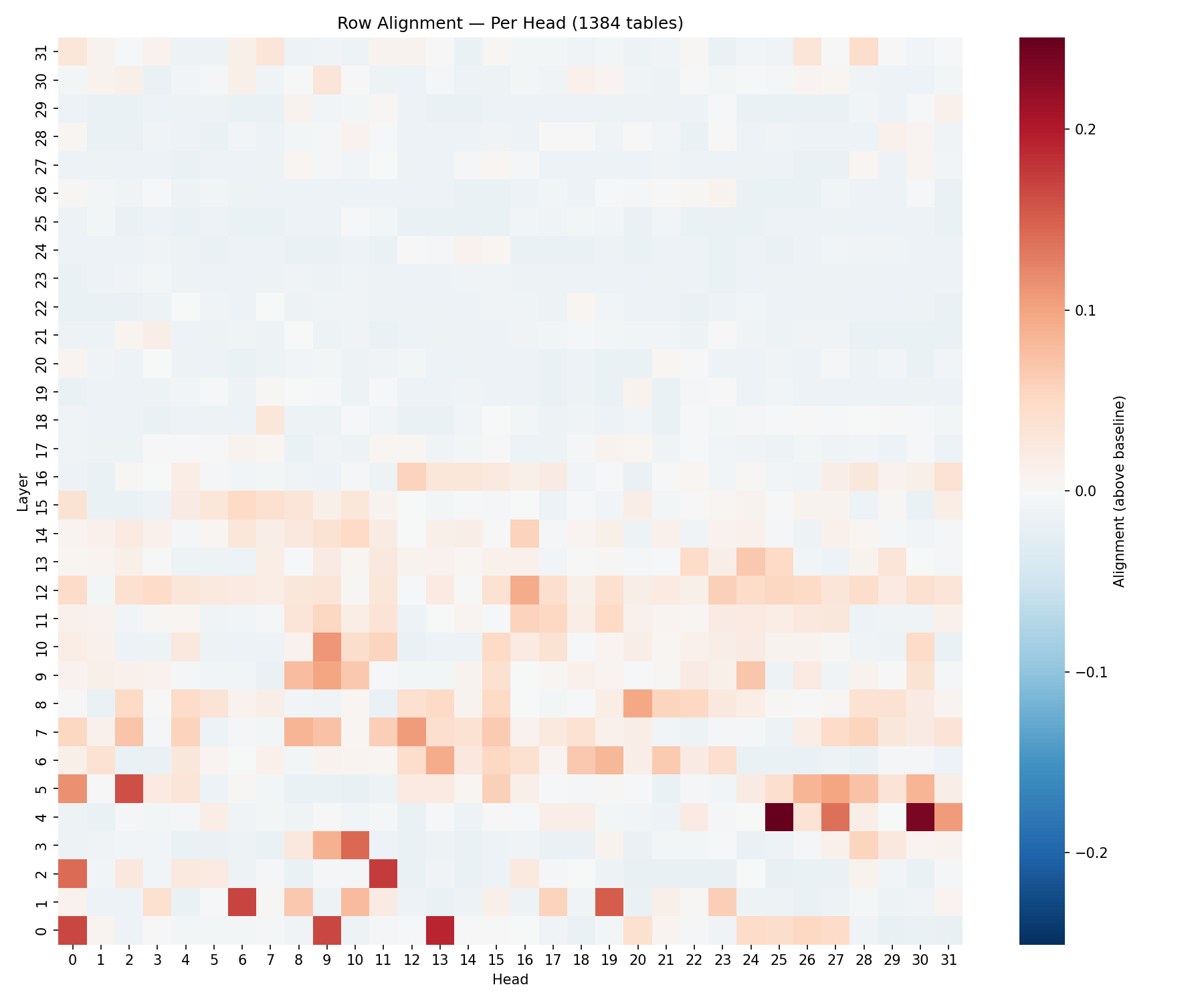

Row alignment

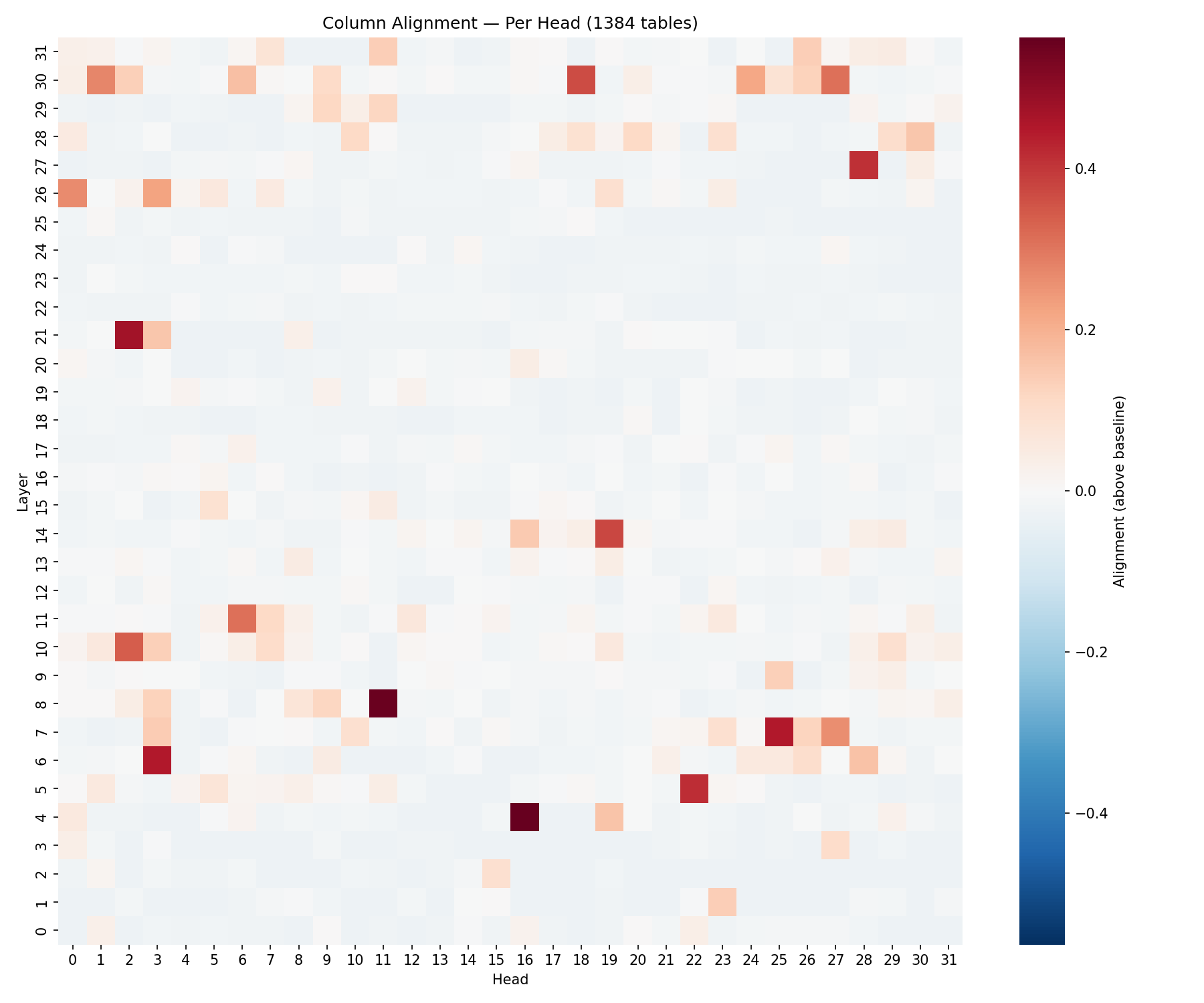

Column alignment

Alignment scores identify heads that treat serialized table tokens as if they live on row and column axes.

Stage 2: matching the question to the table

Once a question is appended, the model must bind words in the question to specific table landmarks. This is where the most interpretable head story appears.

The head L8H11 is currently the best candidate for a matching hub. In Llama Instruct, it scores highly on both axes:

head	role	representative scores
L8H11	matching hub	colname -> header 0.78, rowidx -> header 0.65, align_col 0.56
L4H16	column matching	colname -> header 0.55, align_col 0.56
L14H19	column matching	colname -> header 0.67, rowidx -> header 0.42
L8H1	column matching	colname -> header 0.65
L5H8/L5H9/L5H11	row-index matching cluster	rowidx -> header about 0.26-0.47

The distinction between the row token groups matters. The token “row” is not very useful. The row index itself is. The model seems to route the numeric row token to the explicit index column and route the column-name tokens to the header row.

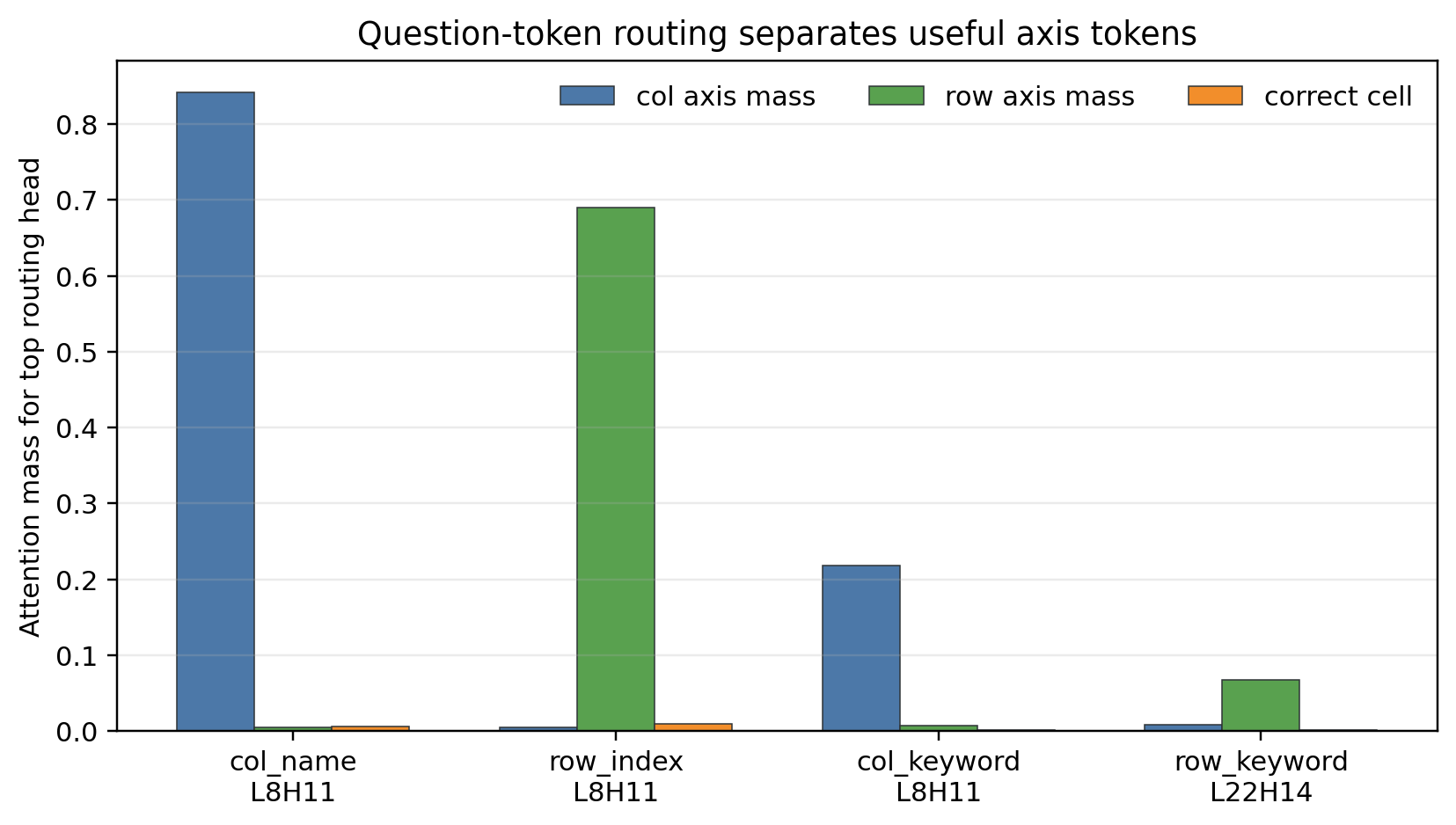

Token-level routing separates useful query content from nearly dead query words. Column names and row indices route; the word "row" mostly does not.

Llama Instruct L8H11 on markdown tables. Hover any token to see where it attends; click to lock. Export source: `src/visualize_attention_head.py`.

The same head on CSV tables. This comparison makes the format-dependence concrete rather than abstract.

Stage 3: retrieving the target cell

The retrieval stage appears later. The strongest correct-cell and structural precision heads in Llama Instruct live around layers 16-24:

head	representative scores
L17H24	correct_cell 0.58, precision_structural 0.65
L16H1	correct_cell 0.53, precision_structural 0.61
L24H27	correct_cell 0.50, precision_structural 0.69
L16H19/L16H8	correct_cell 0.32-0.44
L22H12/L22H13/L22H14	correct_cell 0.32-0.37

These heads are less cleanly “the answer head” than one might hope. Correct cell attention is diffuse, and attention is not the whole computation. Still, the depth profile is robust: metrics that directly involve the target cell peak later than metrics that involve matching the query to headers and row indices.

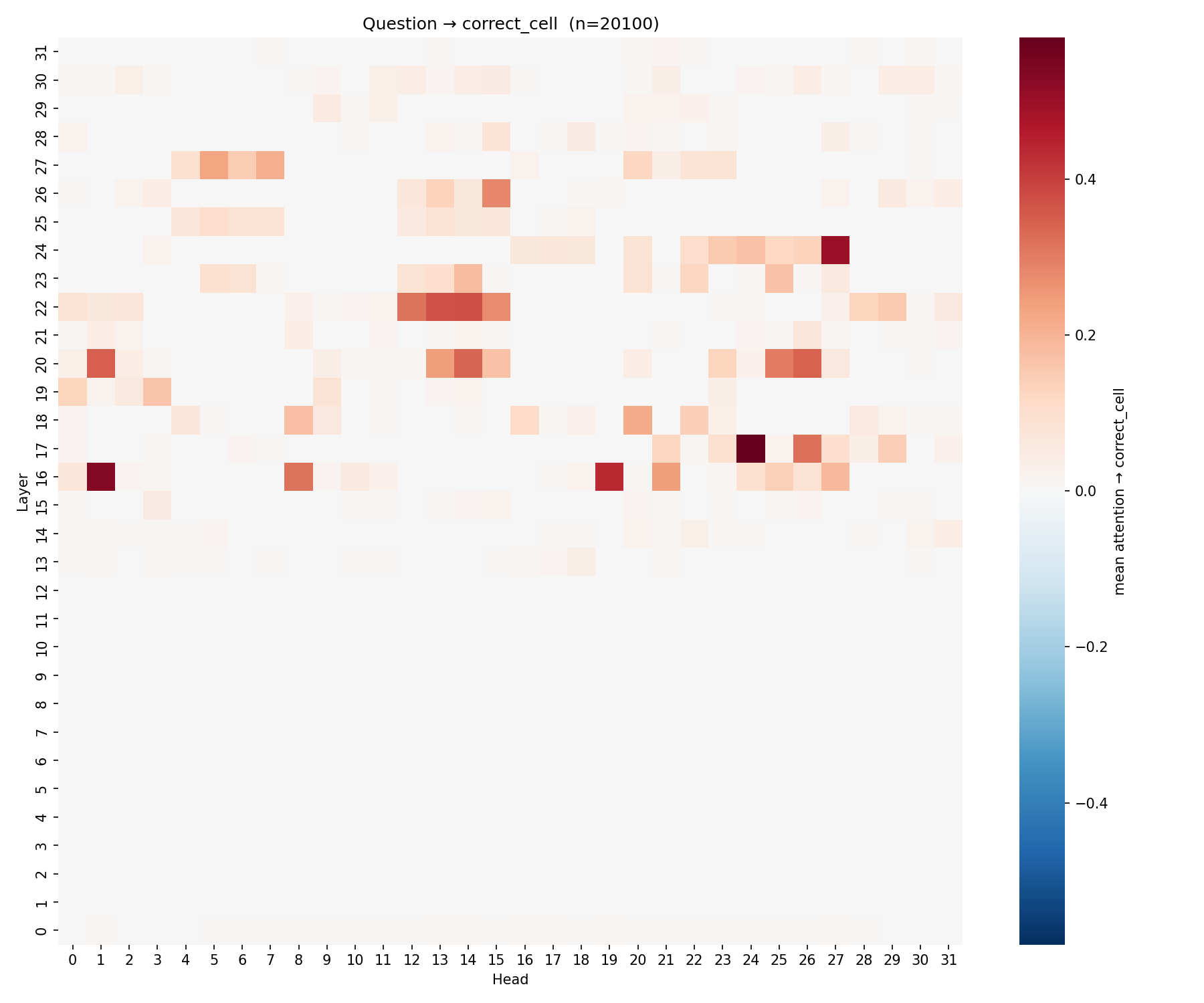

Correct-cell attention

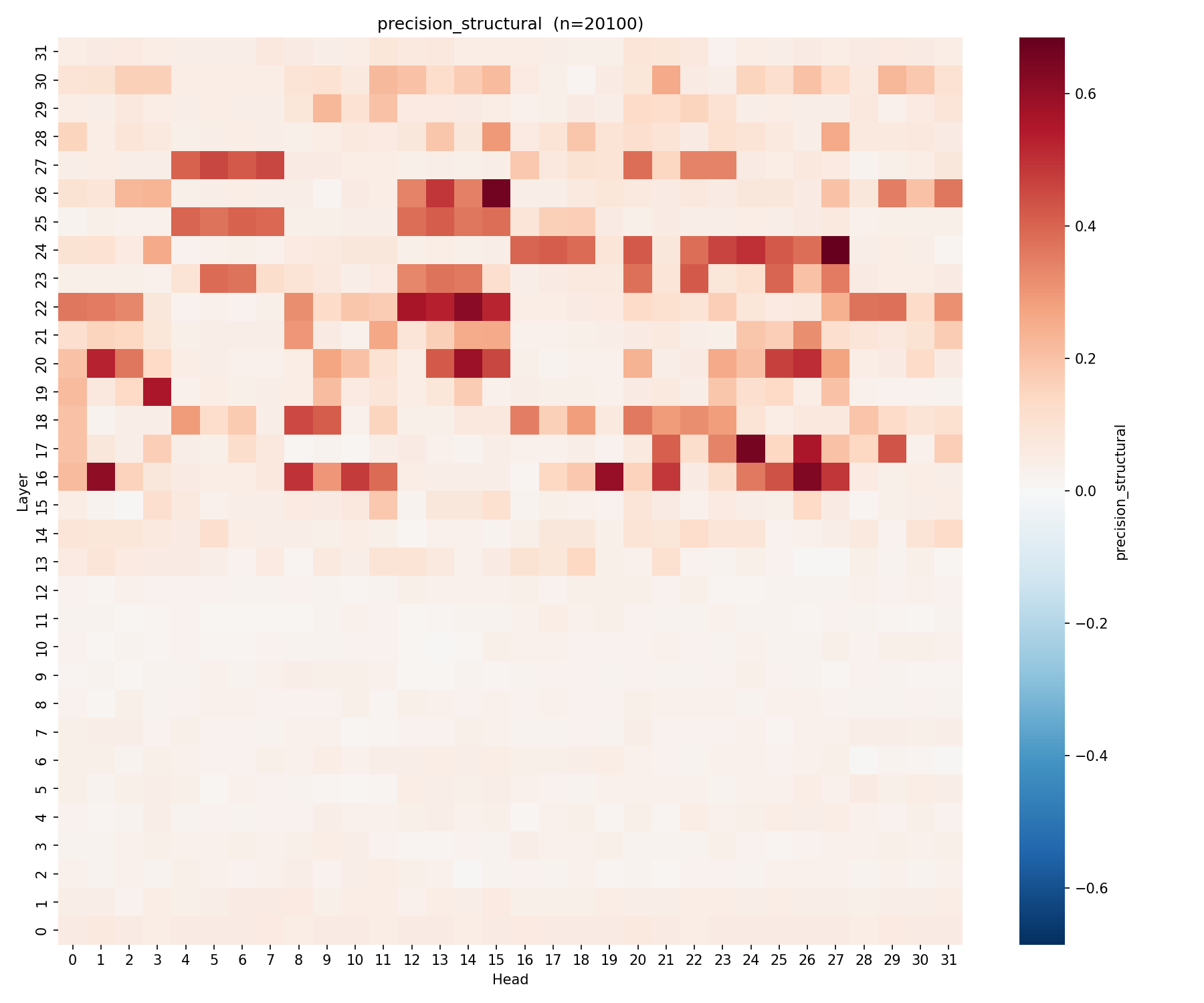

Structural precision

Late heads route more directly to the table region needed for answering.

Comparing Base and Instruct

Instruction tuning improves the native chat setup, but the clean matched-prompt comparison is more subtle. When Llama base and Llama Instruct both see the same base-style 2-shot text prompt with row indices, exact match changes only from 0.862 to 0.876: a +0.014 gain.

The updated grid separates three levers that were previously tangled together:

comparison	exact-match change	effect
prompt format, 2-shot text prompt -> 2-shot chat template	0.876 -> 0.930	+0.054
shots, chat-template 0-shot -> chat-template 2-shot	0.912 -> 0.930	+0.018
weights, base -> Instruct under matched 2-shot text prompt	0.862 -> 0.876	+0.014

That does not mean instruction tuning is irrelevant. It means most of the apparent Instruct advantage in this setting comes from prompt format, with a smaller contribution from in-context examples and an even smaller clean contribution from tuned weights. Mechanistically, the head-level comparison suggests a more specific story: matching is mostly pretrained, while retrieval shifts more under instruction tuning.

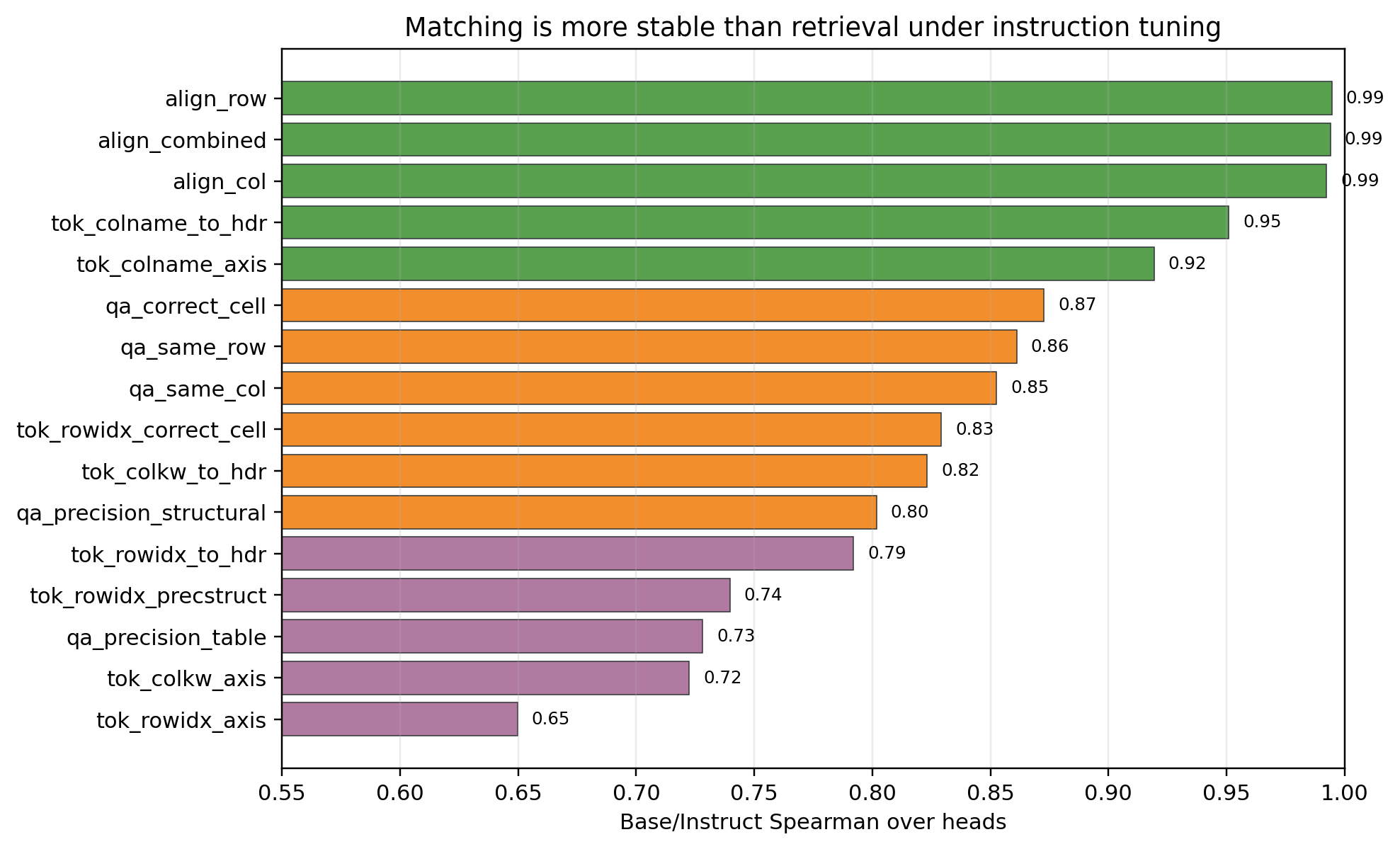

Per-metric Base/Instruct Spearman correlations over all 1024 Llama heads:

metric	Spearman
align_row / align_combined / align_col	about 0.99
column-name -> header	0.95
column-name axis mass	0.92
correct-cell attention	0.87
structural precision	0.80
table precision	0.73
row-index axis mass	0.65

The near-identity of alignment and column-name matching heads suggests that much of the table-axis machinery is already present in the base model. The lower stability of retrieval and row-index routing suggests these later, answer-facing computations are more affected by instruction tuning and prompt format.

Base/Instruct head-rank stability

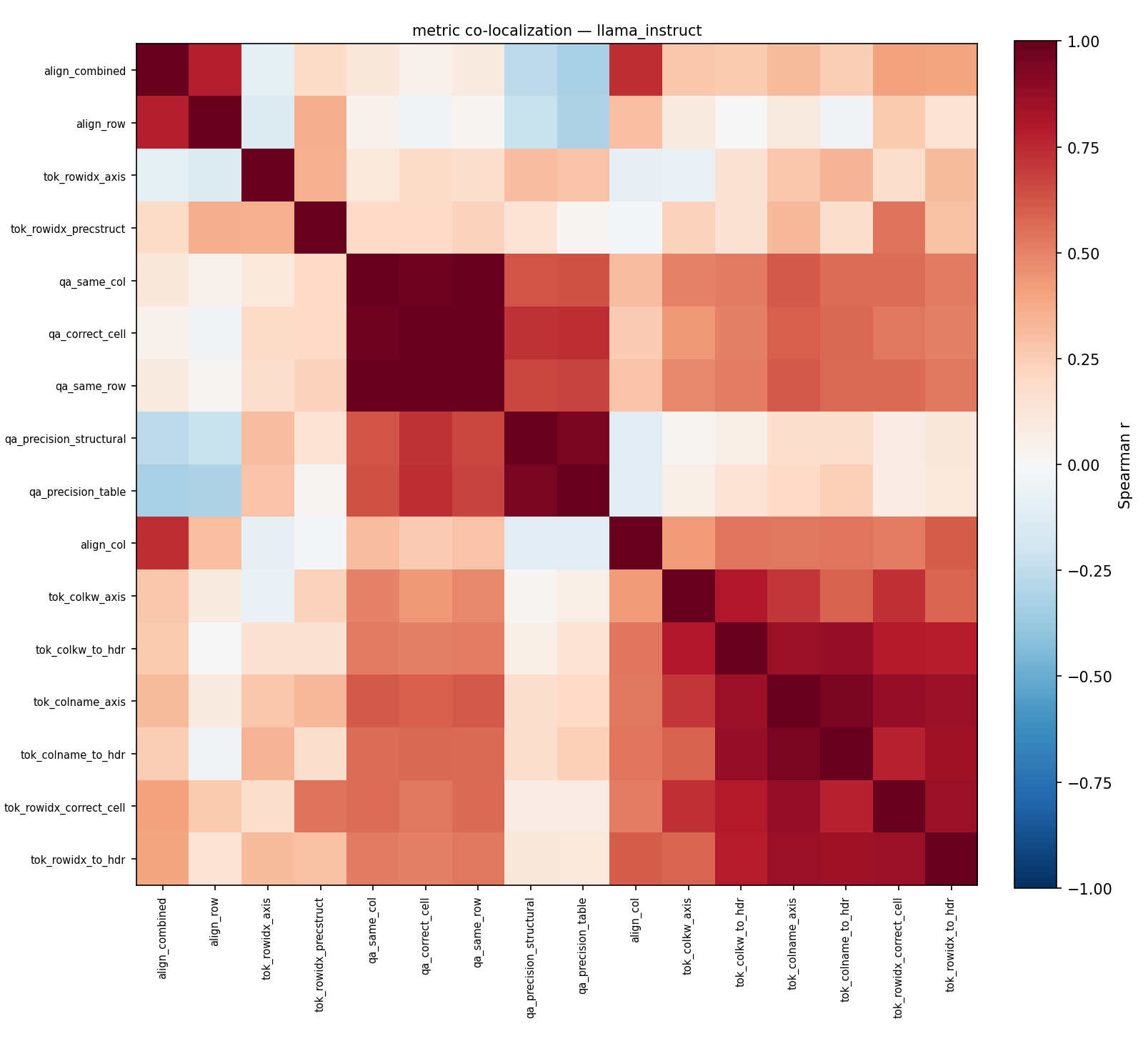

Instruct co-localization

Matching heads are highly stable across base and Instruct; retrieval heads move more.

What goes wrong?

There are two main behavioral failure stories.

The first is row tracking. Without a row-index column, the model often retrieves from the right column but the wrong row. This is the off-by-row failure described above, and it is exactly the failure that row indices reduce.

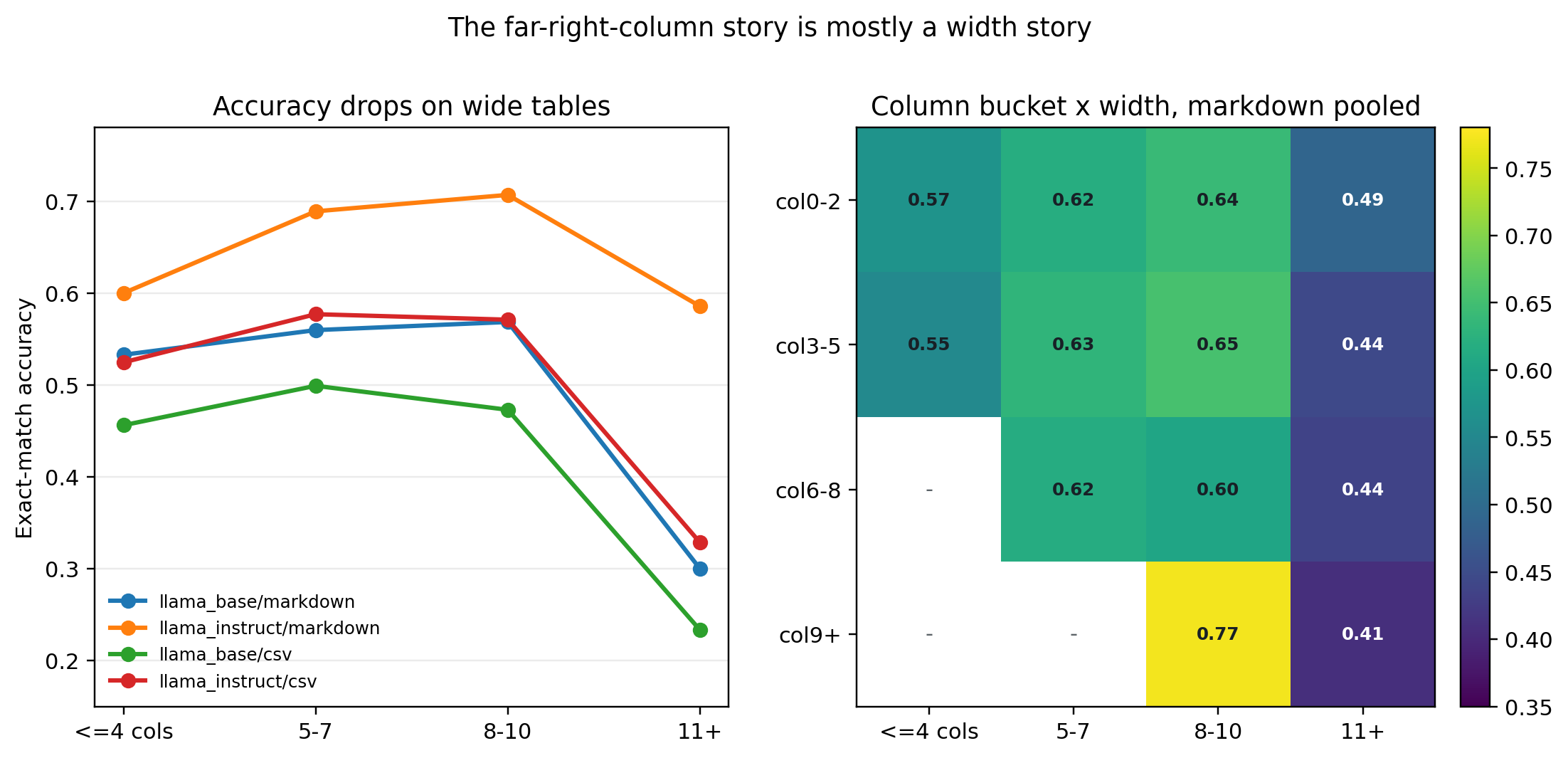

The second is wide-table collapse. At first glance, accuracy appears to fall for far-right columns. But after controlling for table width, the story changes: the hard cases are not far-right columns; they are wide tables.

At a fixed width, accuracy is roughly flat across column position. The real drop appears when tables have 11 or more columns:

format/model	typical mid-width accuracy	11+ column accuracy
Llama base, markdown	about 0.57	0.30
Llama Instruct, markdown	about 0.71	0.59
Llama base, CSV	about 0.50	0.23
Llama Instruct, CSV	about 0.58	0.33

The regression view points the same way. Width is a stronger column-side error driver than absolute column index, while row depth is the strongest within-table driver overall.

The apparent far-right-column failure is mostly a wide-table failure.

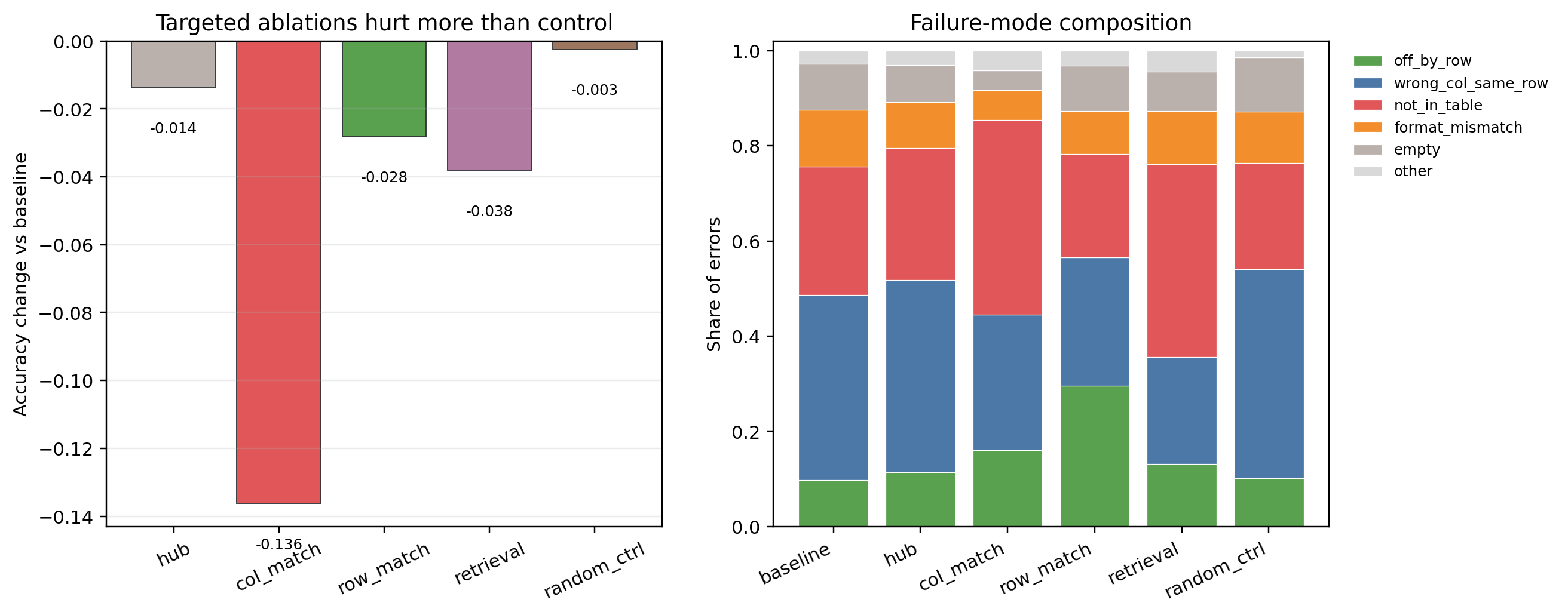

The first causal interventions sharpen the story. In Llama Instruct with row-indexed markdown tables, mean-ablation gives:

ablated set	heads	exact	delta acc	main shift
baseline	none	0.910	-	-
hub	L8H11	0.896	-0.014	small change
column matching	L4H16, L14H19, L8H1, L10H2	0.774	-0.136	not_in_table rises
row matching	L5H8, L5H9, L5H11, L14H17	0.882	-0.028	off_by_row rises
retrieval	L17H24, L24H27, L16H1	0.872	-0.038	not_in_table rises
random control	12 random heads	0.908	-0.003	inert

The row-matching ablation is the cleanest mechanism-to-behavior link: off_by_row errors rise from 9.7% to 29.6% of errors. The column-matching ablation causes the biggest accuracy drop, but its dominant new failure is not “wrong adjacent column.” Instead, the model often leaves the table entirely. That suggests column matching may be a prerequisite for the retrieval stage to stay anchored to the table region at all.

The first causal tests support specific roles for matching heads, especially row-index heads.

The base-model replication adds an important caution. On Llama base, 2-shot, row-indexed markdown, the baseline is already much more fragile: 34.4% of its errors are off-by-row, compared with 9.7% for Instruct. Column matching still replicates as the dominant bottleneck, but the row-matching specificity does not cleanly replicate because the random control is no longer inert:

ablated set	exact	delta acc	off_by_row share
baseline	0.880	-	34.4%
column matching	0.649	-0.231	46.3%
row matching	0.806	-0.074	44.5%
retrieval	0.823	-0.058	35.6%
random control	0.839	-0.041	45.5%

So the clean causal row-tracking claim is currently strongest in the robust Instruct regime. In the base 2-shot regime, many perturbations seem to tip an already-marginal row-tracking process into off-by-row errors.

What formatting helps?

The mechanistic picture gives practical formatting advice:

1. Include a row-index column. This turns row lookup into token matching and removes the dominant off-by-row failure. It does not have to be the first column to help; randomized index position retains most of the gain.
2. Prefer markdown over CSV, and keep the pipes. Markdown gives the model stronger visual and token-level landmarks; removing pipe delimiters causes a small but measurable drop.
3. Keep tables narrow when possible. The current failure threshold is around 11 or more columns; position within a fixed-width table matters much less than width itself.
4. Use stable, explicit headers. The column-name matching heads need a clear header token to bind to.
5. Ask with the same surface form used in the table. If the table says Score, ask for Score, not a paraphrase, unless you have separately tested semantic header matching.

These are not just prompt-engineering guidelines; each one corresponds to a proposed internal operation: make row identity matchable, make columns landmarked, and keep the retrieval region small enough that later heads can stay locked onto the table.

Current hypotheses

Here is the current thesis story in hypothesis form.

1. Table lookup is a two-stage pipeline. Early/mid layers match the question’s column name and row index to table landmarks; late layers retrieve the target cell.
2. Matching is mostly pretrained; retrieval is more instruction-sensitive. Alignment and column-name matching are highly stable across base and Instruct, while retrieval and row-index routing shift more. Behaviorally, prompt format is the largest measured Instruct lever so far: +0.054 for 2-shot text prompt -> 2-shot chat template, compared with +0.018 for adding chat-formatted examples and +0.014 for tuned weights under a matched prompt.
3. L8H11 is a matching hub. It is the clearest single head that routes both column-name and row-index information to table landmarks.
4. Rows are found by index, not by row keyword. The row-index column is the load-bearing row anchor; the word “row” itself carries little routing signal.
5. Wide tables, not far-right columns, drive the column-side collapse. Absolute column position is much less important once table width is controlled.
6. Matching heads are causally necessary in the robust Instruct regime. Ablating row-index matching heads selectively increases off_by_row errors; ablating column-matching heads causes a much larger accuracy drop and often sends the model off-table. The base 2-shot replication keeps the column bottleneck but shows that row-specific attribution depends on a stable behavioral regime: when baseline row tracking is already fragile, even random head ablations can increase off-by-row errors.

Current evidence and open questions

The evidence is strongest for the Llama Instruct markdown row-index setting, where behavior, attention routing, token-level routing, and ablation all line up. As of July 8, 2026, the Llama markdown behavioral grid now includes no-index, first-column row-index, and randomized-position row-index conditions for base and Instruct. The story is still weaker where only a subset of analyses has finished, especially across Qwen, CSV, and intervention variants.

The most important open questions are:

1. Can activation patching localize the computation more cleanly than mean-ablation? Mean-ablation is a blunt tool. Patching on the robust Instruct setting could test whether the matching heads actually carry the row/column binding information needed downstream.
2. Does the two-stage story replicate across Qwen and CSV? Early Qwen and CSV results are suggestive, but the complete aligned grid is still in progress.
3. How much of retrieval is attention, and how much is MLP/residual computation? Correct-cell attention is useful but diffuse; a complete circuit likely needs value vectors, MLPs, and residual-stream patching.
4. Can head selection be made blind? The current head-vote and ablation choices are informed by ground-truth metrics. A stronger claim would select heads on one split and test causal effects on another.
5. Can the remaining prompt-format corner be isolated? The completed grid separates chat-template format, chat-formatted examples, and tuned weights for the main row-index setting, but an Instruct few-shot-text zero-shot run would isolate shot effects away from the chat template.
